Part Number:FINCH II-W
$1,540.00
| PART TYPE: | Displays & Monitors |
|---|---|
| MANUFACTURER: | TITAN LOGIX |
| SHIPPING METHOD: | Ground Shipment |
Features & Benefits

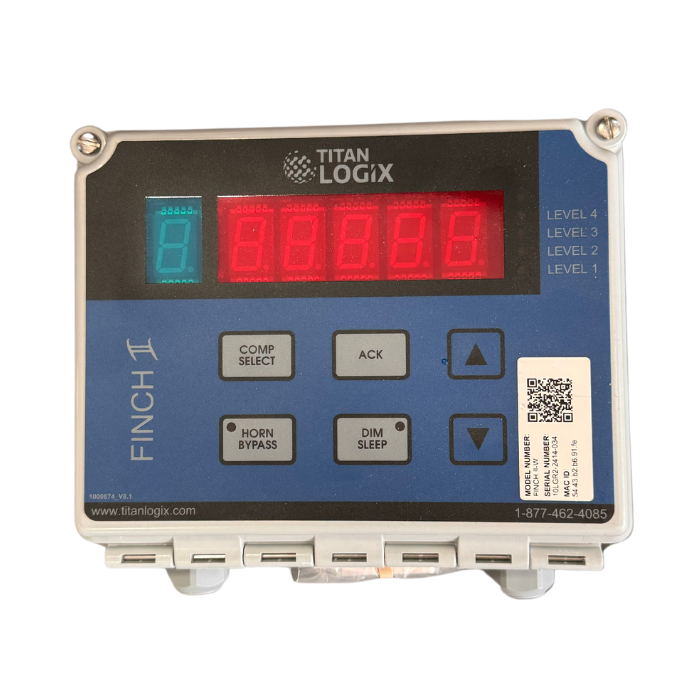

FINCH II-W
- Get visual insights on your fluid levels with a bright LED screen, the FINCH II displays your volume information, alarms, and system error codes. The rugged and weatherproof design can withstand all hazardous environments. This technology integrates with the TD Series system. With the latest FINCH II Multicompartment Display, it is now possible to monitor tank levels in real-time for up to six compartments (up to five compartments with Rack Control) using only one FINCH II-6W Multicompartment Display. This eliminates the need for multiple displays or selector switches and results in lower installation and equipment costs while providing a superior user experience and the most accurate and reliable multicompartment overfill protection in the industry today.
- FEATURES
- The FINCH II integrates with our TD100 Series system and provides multiple options for fail-safe overfill prevention
- Tank level displays for multiple compartments
- Bluetooth connectivity with Titan’s mobile monitoring app
- Enhanced visual and audible alarm features and system error codes
- Weatherproof display for exterior installations. Type 4/4X, NEMA 4/4X
- Allows the control of pumps, PTOs, valves, and engine shutdown systems
- CSA-approved for hazardous areas, Class 1, Div. II
SPECIFICATIONS
- Power: 8-30V DC
- Current Consumption: 8A max @ 12V DC
- Relay ratings: 3.3A maximum on any individual relay, and 6.6A maximum across all 4 relays Operating temperature range: -40°F (-40°C) to 149°F (65°C)
- Communications: SV Bus, BLE
- Hazardous area approvals: CSA Class 1, Div. 2, Groups C & D, T3
- Enclosure: flame-retardant FRP and Type 4/4X, NEMA 4/4X
