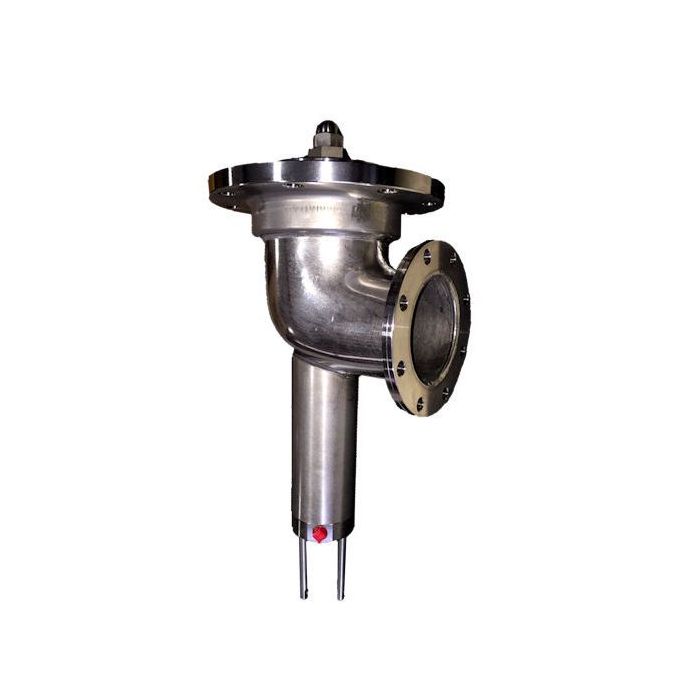

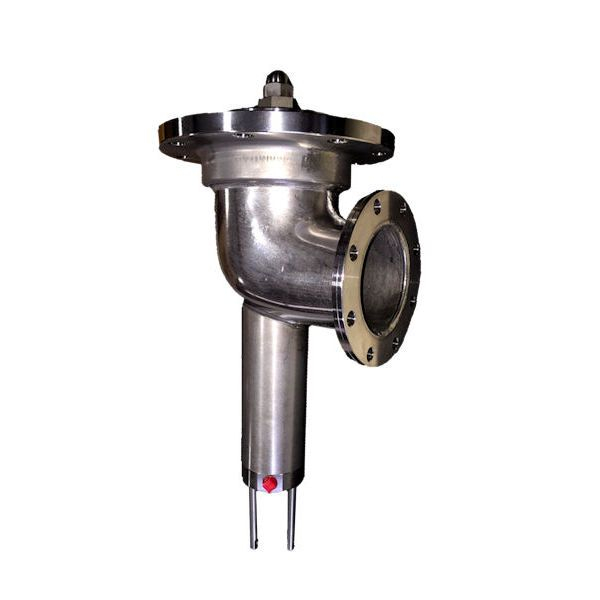

4″ x 3" External Chemical Valve + 316 Stainless Steel disc w/ PTFE Seat
SCHEMATIC: Betts External Chemical Hydraulic Valve
TRAILER USE: | Chemical Trailer, Other Trailer |
---|---|
PART TYPE: | Hydraulic Valves |
MANUFACTURER: | BETTS INDUSTRIES INC. |
METAL: | 316 Stainless Steel |
STYLE: | Standard |
FLANGE | Yes |
SIZE: | 4" X 3" |
SUMP SIZE | 4" | Sump |
PIPE SIZE: | 3" |
BODY MATERIAL: | 316 Stainless Steel |
SHIPPING METHOD: | Ground Shipment |
Description
Features & Benefits
This valve does NOT include a sacrificial shear section; therefore, the cargo tank must have adequate accident damage protection to shield the valve as specified in 49 CFR §178.345-8.
The hydraulic actuator has a ¼” NPT inlet port and is specifically designed to isolate hydraulic completely fluid from the cargo tank and piping. Hydraulic leaks are contained in the piston cylinder and will drain to the valve's exterior through the indicator weep holes as an alert for repair.
Two indicator pins are located on the bottom of the piston cylinder and move with the disc. The pins can be used as a push point to jack open the valve manually.
-
● Valve MAWP: 50 psi [3.4 bar]
● Min. bursting pressure: 200 psi [13.8 bar]
● Working temperature range: -40°F to 400°F [-40°C
to 204°C]
● Max. steam jacket pressure: 150 psi [10.3 bar]
● Hydraulic line pressure: Minimum 1,500 psi [103bar] Maximum 3,500 psi [241 bar]
● Hyd. volume to fully open valve:1.22 in [20 ml]
- A solid flat mounting surface must be provided.
- Recommended mounting pad is MP19752LC.
- Recommended hydraulic pump is HP46982ALSL and hydraulic distributor is CH16283 or HD2-1EYBN
