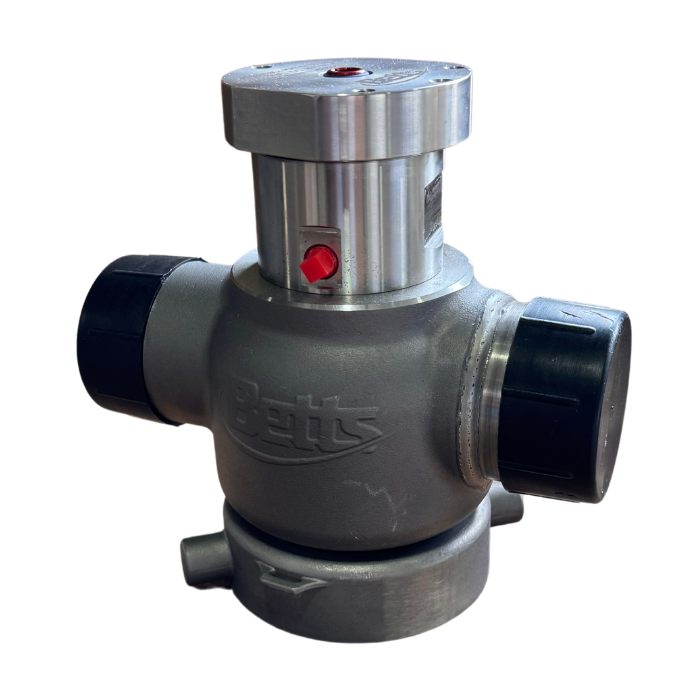

Betts 2" Stainless Steel Hydraulic Vapor Recovery Valve
The CHR2H2SSTS is a 2” stainless steel hydraulic vapor recovery valve constructed from 316L stainless steel with PTFE seals. It is designed for use with DOT 407 and 412 cargo tanks carrying volatile organic compounds and chemicals.
This configuration features a dual outlet, high profile body that meets TTMA RP 102 requirements. It mounts to a 3” NPT nozzle, with 2” NPT outlets that include sacrificial shear grooves.
The hydraulic actuator is detachable for cleaning or replacement. The system is isolated from the tank’s lading to avoid contamination, and a red anodized piston/indicator provides a visual open/closed position signal.

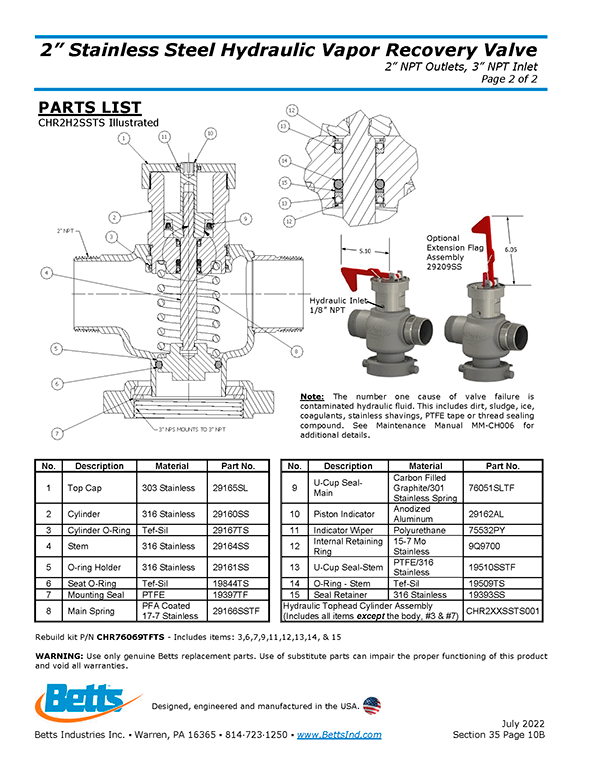

Click the link above to view the parts list for the Betts 2” Stainless Steel Hydraulic Vapor Recovery Valve.
Contact a parts specialist if you have any questions.
| SHIPPING METHOD: | Ground Shipment |
|---|---|
| TRAILER USE: | Chemical Trailer, Other Trailer |
| MANUFACTURER: | BETTS INDUSTRIES INC. |
| SIZE: | 2" |
| STYLE: | 2 Port Assembly |
| METAL: | Stainless Steel |
